VIDEO PROFILE PROJECTOR


You are here > Home | Products | Vertical Profile Projector

Profile Projector
( VPP - MAZ )

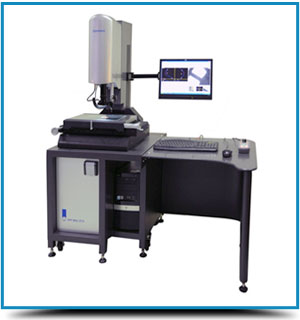

Video Metrology

Model - VPP-MAZ 2515, VPP-MAZ 3020, VPP-MAZ 4030X Y Work Stage
Size of Top Plate :- 420 x 250 mm, 430 x 330 mm, 610 x 460 mm
Traverse: X & Y axis :- 250 x 150 mm, 300 x 200 mm, 400 x 300 mm
Load Capacity :- 25 Kg, 30 Kg
Z axis Travel : - 150 mm, 200 mm, 300 mm
Base and column :- Made of 0-0 grade Granite Video System
Imaging Device :- 1/2" Sony CCD camera
Lens :- High Resolution Tele-centric Zoom Lens
Magnification Range :- 20 x - 125 x
Illumination System
Profile : -LED Array placed below
Surface : - 4 quad PC controlled zone Light
Measurement System
Linear Measurement X Y Z Axis : - Linear Encoders 1 u LC
Measurement Software : - 3D Geometric Measurement Software with programming
SPC : - Advanced SPC Software in built
Measuring Accuracy : - (3 + L/100) microns
Computer : - Latest Computer with 17" LCD Monitor Windows XP OS
Optional Accessories :- Renishaw Touch Probe, Motorized Zoom lens
Physical Specifications : -
Net Weight : - 170 Kgs , 280 Kgs , 410 Kg
Overall Dimensions : - 1000 x 600 x 1400 mm, 1200 x 720 x 1600 mm, 1250 x 900 x 1571

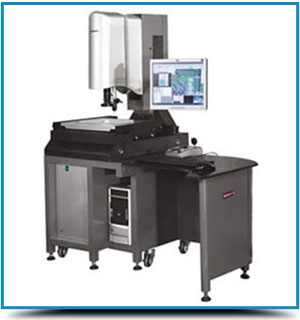

Video Metrology
( VPP - CNC )
Video Metrology

Model - VPP 3020 CNC , VPP 4030 CNC X Y Work Stage :-
Size of Top Plate :- 430 x 330 mm, 610 x 460 mm
Traverse: X & Y axis : - 300 x 200 mm, 400 x 300 mm
Load Capacity : - 25 Kg, 30 kg
Z axis Travel :- 200 mm, 300 mm
Base and column :- Made of 0-0 grade Granite
Video System :-
Imaging Device :- 1/2" Sony CCD camera
Lens : - High Resolution Tele-centric Zoom Lens
Magnification Range : - 10 x - 250
Illumination System : -
Profile : - LED Array placed below
Surface : - 4 quad PC controlled zone Light
Measurement System :-
Linear Measurement X Y Z Axis :- Linear Encoders 1 u LC
Measurement Software :- 3D Geometric Measurement Software with CNC programming Software with CNC programming
SPC : - Advanced SPC Software in built
Measuring Accuracy : - (3 + L/100) microns
Computer : - Latest Computer with 17" LCD Monitor Windows XP OS
Optional Accessories : - Renishaw Touch Probe
Physical Specifications : -
Net Weight : - 280 Kgs, 410 Kgs
Overall Dimensions : - 1200 x 720 x 1600 mm , 1250 x 900 x 1571 mm
