You are here > Home | Products | Servo Computerized Universal Testing Machines

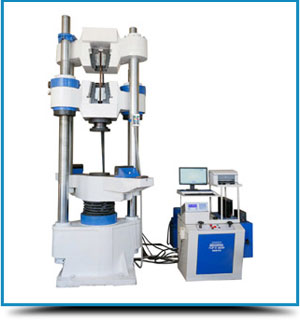

Servo Computerized UTM with front open crosshead and hydraulic grips,
Model : TUF-C-600-kN (SERVO)
Servo Computerized Universal Testing Machines
  Loading Capacity is 600 kN
  Maximum clearance for tension & compression is 650 mm.
  Distance between columns is 600 mm.
  Piston stroke is 250 mm.
  Loading rate is from range 25 kN/min to 1200 kN/min.
  Maximum straining rate is 100 mm/min.
  Machine successfully developed for the first time in India.

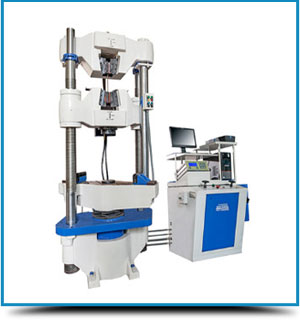

Servo Computerized Universal Testing Machine, with front open crosshead and hydraulic grips
Model : TUF-C-1000-kN (SERVO)
Servo Computerized Universal Testing Machines

  Maximum capacity is 1000 kN
  Maximum tensile clearance is 50 - 650 mm
  Maximum compression clearance is 0 - 650 mm
  Piston stroke is 250 mm.
  Maximum straining speed at no load is 80 mm/min.
  Supplied with various rounds and flat jaws for testing round and flat     Samples.



Servo Computerized UTM with front open crosshead & hydraulic grips,
Model : TUF-C-1200kN (SERVO)
Servo Computerized Universal Testing Machines

  Maximum capacity is 1200 kN
  Maximum tensile clearance is 50 -750 mm
  Maximum compression clearance is 0 - 750 mm
  Piston stroke is 250 mm.
  Maximum straining speed at no load is 80 mm/min.
  Supplied with various rounds and flat jaws for testing round and flat     samples.



Servo Computerized UTM with front open crosshead & hydraulic grips,
Model : TUF-C-2000kN (SERVO)
Servo Computerized Universal Testing Machines

  Loading capacity is 2000 kN
  Maximum clearance for tension & compression is 750 mm.
  Distance between columns is 850 mm.
  Piston stroke is 300 mm.
  Loading rate is 80 to 2000 kN/min.
  Maximum straining rate is 45 mm/min.
  Huge machine successfully developed for the first time in India.




Full Product Range Of Material Testing Machine
We are Engaged in Sales and Servicing & Calibration of High Quality Material Testing Equipments and
our setup is situated at Kothrud, Pune ( Maharashtra, India )
PATKAR ENGINEERS
