Vertical Profile Projector


You are here > Home | Products | Vertical Profile Projector

Optical Profile Projector
Optical Profile Projector

A Wide range of profile projectors to suit every need and bugget.
All Projectors are supplied with high resolution, low distorton telecentric lenses. magnification range from 5x to 100x.
The X,Y measuring stages incorporate the unique screwless design wth zero backlash and quick release facilty. Optomech offers a choice of illumation systems i.e., collimated beam condensed light of fiber -optic cool light source.
A variety of measuring systems from plain 2 axis DRO to 3 Axis microprocessor based geometric function DRO and advanced computerized measuring system with graphical User Interface and capability to do reverce engineering.


Technical Specifications

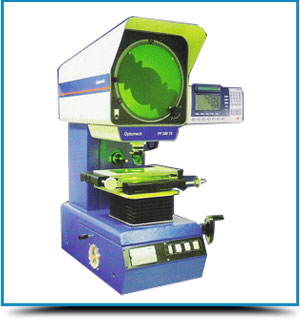

Vertical Profile Projector
Model
PP 300 TE
Screen Diameter
300 mm
Magnification
Standard
10x Telecentric Lens
Optional
20x 25x 50x 100x with special condensor
Projection Accuracies
Contour + 0.10% Surface + 0.15%
Workstage
Size of top plate
350 x 210 mm
Measuring Traverse
200 mm & 100mm
Measuring Accuracy
(3+L/100) Microns
Work Piece Capacity
Load Capacity
20 kg
Max Diameter
150mm
microprocessor Based DRO illumination Systems
3 axis DRO with liner Encoders 5 Micron LC and Rotary Encoder 1 LC Tungston Halogen Lamps
Profile
24v, 150 With Condensor
Surface illumination
24v, 150 With Twin Fiber Optic Cables

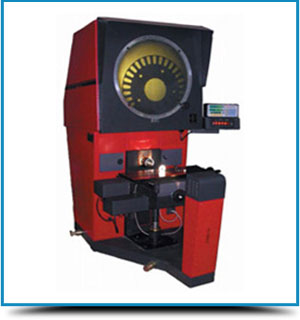

Vertical Profile Projector
( Model 400 H )
Vertical Balancing Machine with Vertical Drilling Head Attachment

Screen :
Class Scrren - Glass screen 400mm with crosslines.
Magnification : - 5x,10x,20x,50x,100x Telecentric Lenses

Workstage :
Size of Top Plate : - 455mm x 125mm
Measuring Traverse : - X:200mm, Y: 100mm
Load Capacity : - 20 kg
Max Diameter : - 175mm

Digital Measuring Systems :
Angular : - 360 rotary encoder LC of 1 ' of an arc. With digital display
Linear : - axis Simple DRO with Linear Encoders 0.005mm LC

Illumination :
Systems : - Tungsten Halogen lamps
Profile : - 24V, 150W
Surface Illumination :- 24V, 150W - 2 Nos
Weight : - 125 kg ( Unpacked)
Dim (LxWxH) :- 1400 x 840 x 1800

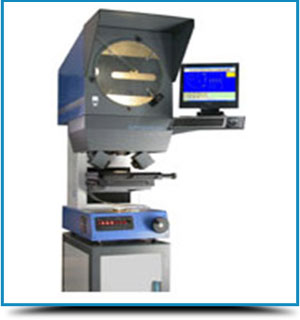

Vertical Profile Projector
( Model 400 TE )
Vertical Balancing Machine with Vertical Drilling Head Attachment

Screen :
Class Scrren - Glass screen 400mm with crosslines.
Magnification : - 5x,10x,20x,50x,100x Telecentric Lenses

Workstage :
Size of Top Plate : - 350mm x 260mm
Measuring Traverse : - X:250mm, Y: 150mm
Working Area : - 255mm x 155mm
Load Capacity : - 255mm x 155mm
Max Diameter : - 175mm

Digital Measuring Systems :
Angular : - 360 rotary encoder LC of 1 ' of an arc. With digital display
Linear : - Computerised DRO System with Geometric Functions and Graphical User Interpface 15" LCD Monitor, keyboard and Mouse

Illumination :
Systems : - Tungsten Halogen lamps

Profile : - 24V, 150W
Surface Illumination :- 24V, 150W - 2 Nos
Weight Dim (LxWxH) :- 125 kg ( Unpacked), 900 x 520 x 1300
