Pendulum Impact Testing Machines


You are here > Home | Products | Pendulum Impact Testing Machines

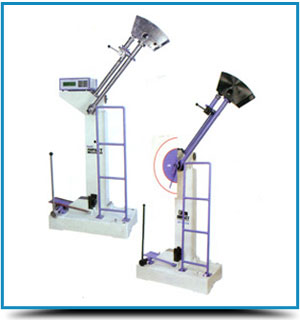

Pendulum Impact Testing Machines
( OPAB-3000-PC )
Pendulum Impact Testing Machines

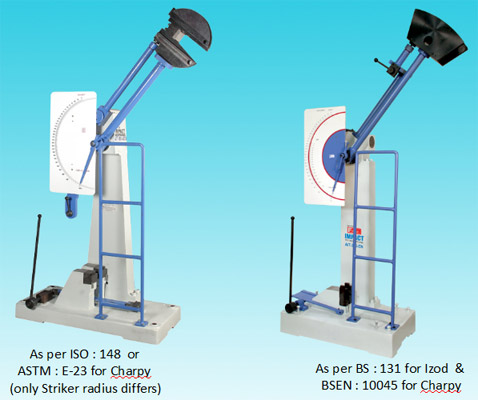

  Suitable for Charpy & Izod Impact Tests on various materials.
    Works on Pendulum principle.
  Rigid designs of machine frame & other parts assure minimum energy     absorption during fracture which results in improved test accuracies.
  The highly stressed & wearing parts like support blocks & strikers are of     special alloy steels duly heat treated.
  Direct indication of Impact energy absorbed by specimen on large dial for     Models: AIT-300-N, AIT-300-EN & on digital panel display
     for Model: AIT-300-D.
  Safety guard for the operator is provided.
  Initial potential energy for Charpy is 300 Joules & for Izod is 170 Joules     with a L.C. of 2 Joules (for Analogue models) & resolution of 0.5
     Joules (for Digital model).
  Pendulum drop angle for Charpy is 1400 & for Izod is 900
  Gauges, Tongs, Sub-zero bath, Templates, U & V notch milling cutters are     available (Optional).
  Accuracy conform to IS:3766-2003, IS:1598-1977, IS:1757-1999,     IS:1499-2003, BS:131-Part-I, II, III, IV & BSEN-l0045-1993
    (for Charpy).




Pendulum Impact Testing Machines
