MICRO VICKERS HARDNESS TESTING MACHINES


You are here > Home | Products | Micro Vickers Hardness Testing Machines

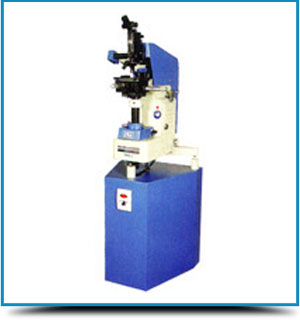

MICRO VICKERS HARDNESS TESTING MACHINES
(MODEL : FMV-1)
COMPUTER CONTROLLED, BALL-SCREW DRIVEN UNIVERSAL TESTING MACHINES

  Suitable for finish components like thin sheets, fine wires, etc. Watch parts     like springs, pivot bearings, gears, cutting edge of Razor blades, drills, file     teeth, etc. Metallic foils, surgical needles, pen points & so on.
  To determine hardness on - surface coatings (like electroplating, etc.),     extremely thin case hardened parts, anodized castings of alluminium, shot     blasted or rolled faces, etc.
  A range of test loads can be used to suit particular application. Test loads     from 10 grams to 1000 grams.
  Magnifications - 125X, 250X & 625X available.
  X-V stage is provided with least count of 0.01 mm, which can move the     job as per the requirements.
  A precision Diamond Indentor (1360 Pyramid) is used to make sharp     indentations on the specimens 1 samples.
  Maximum Test height x Throat: 115 x 70 mm.
  Load accuracy well within + 1% of nominal load value.
  Machine conform to IS:1754
  Extra (Optional) accessories like - Knoop Indentor, Knoop test block,     Precision vice, Thin specimen holding device, V-shape anvil, Vertical &     Horizontal fine specimen holding device, Rotary table, etc are available.



Full Product Range Of Material Testing Machine

We are Engaged in Sales and Servicing & Calibration of High Quality Material Testing Equipments and
our setup is situated at Kothrud, Pune ( Maharashtra, India )
PATKAR ENGINEERS
