Dynamic Balancing Machines


You are here > Home | Products | Dynamic Balancing Machines Horizontal Type

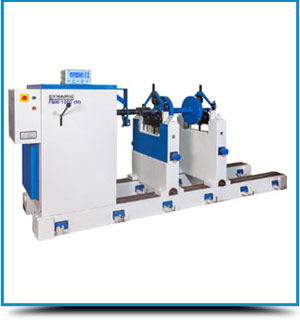

Dynamic Balancing Machines Horizontal Type
( Model : FBM-1000-M )
Dynamic Balancing Machines Horizontal Type

  Hard bearing type horizontal two plane Dynamic Balancing Machine
    with DSP based measuring panel.
  Maximum capacity is 1000 kg
  Maximum diameter of Rotor 1600 mm.
  Minimum distance between Bearings 350 mm
  Maximum distance between Bearings 1650 mm
  Journal diameter range over standard Roller Carriage is 25 to 140 mm.
  Balance Speed 350 & 700 rpm.
  Minimum unbalance mass measured is 0.1 gram.
  Maximum unbalance mass measured is 4 kg.
  Minimum achievable unbalance per rotor weight is 0.5 gmm/kg
  Supplied to Iran.

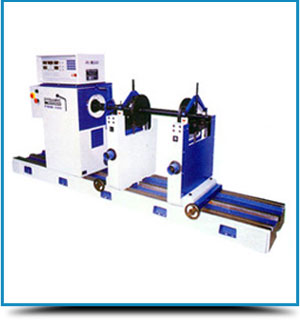

Dynamic Balancing Machines Horizontal Type
( Model: TKG-EC )
Dynamic Balancing Machines Horizontal Type

  Hard bearing type horizontal end driven two plane machines with     microprocessor based or DSP based measuring panel.
  Suitable for balancing of different types of rotors like rotor of electrical     machines, fly wheels, crankshafts, submersible pump rotors, etc.
  Measures & stores the unbalance in gms along with the angle for two     selected correction planes on digital display.
  Additional bed length with or without gap bed arrangment can be provided     at extra cost for extra long rotors.
  Additional center height arrangement is also possible to accommodate     bigger diameter rotors.
  Minimum achievable unbalance upto 0.5 micron shift in c.g.
  Various Models Suitable for rotors from 0.5 kg to 10,000 kg.
  Horizontal belt driven hard bearing two plane machines are also supplied     for rotors weighing from 0.1 kg upto 3000 kg.
  Unbalance indication either by stroboscopic method or photo scanning     method sensitivity upto 0.5 micron.
  Computerized / Electronic versions with printer facility & special machines     to suit customers requirements can also be supplied.
  Machines conform to IS:13277-1992.
