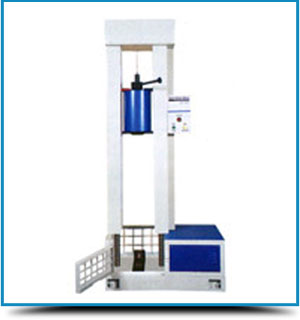

DROP WEIGHT IMPACT TESTING MACHINE


You are here > Home | Products | Bend & Re-Bend Testing

DROP WEIGHT IMPACT TESTING MACHINE
(Models: FDW-1650 J)
DROP WEIGHT IMPACT TESTING MACHINE

  To conduct fracture toughness test as per ASTM-E-208.
  Energies are 350,400,450,550,800,1100,1350,1650 J.
  Drop weight is 136 kg & height of fall is 1237mm (max.) adjustable
     to get the desired energies. Striker tip radius is 25.4mm and hardness is     50 HRC (min.).
Striker lifting arrangement is moterised driven by electrical motor &
    speed of lifting is 0.9 mtr/min.(appx.).
