DEEP THROAT BRINELL HARDNESS TESTING MACHINES


You are here > Home | Products | Deep Throat Brinell Hardness Testing Machines with Fixed Table

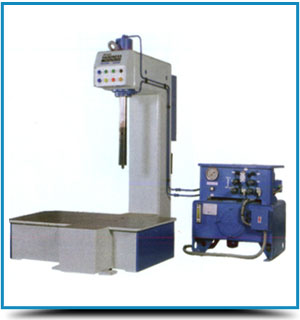

DEEP THROAT BRINELL HARDNESS TESTING MACHINES WITH FIXED TABLE (MODEL : WOM TYPE)
DEEP THROAT BRINELL HARDNESS TESTING MACHINES WITH FIXED TABLE

  The Semi Automatic Brinell Hardness Tester is an inline Production     machine highly suitable for batch testing of heavy jobs.
  The machine has a C- Type heavy & big loading frame with a deep throat     of 400mm & Test height of 900mm or 600mm.
  This machine is more suitable for testing hardness of heavy jobs.
  Load stage of 750kgf & 3000kgf (Optional loads of 500kgf & / or     1000kgf
  The indentation measurement is with Brinell microscope of 25X     magnification & least count of assuring device 0.01 mm
  The machine is provided with a large & fixed table size: 1200mm wide x     600mm depth. Load capacity of table is from 1200kg to 1500kg.
  Ram stroke of 300mm with upward speed of 930mm/min. & downward    (loading) speed of 440mm/min.
  Test block of desired hardness range are available (Optional).
  Special test fixtures for odd jobs/ production testing (Optional).
  Computerised Brinellimpression measurement system (BIMS system)    (Optional).
  Accuracy conform to IS:2281-2005 & BS:240.



Full Product Range Of Material Testing Machine
