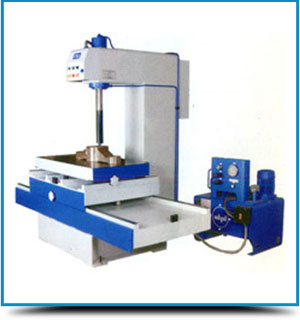

DEEP THROAT BRINELL HARDNESS TESTING MACHINES WITH FIXED TABLE


You are here > Home | Products | Deep Throat Brinell Hardness Testing Machines with Movable Table

DEEP THROAT BRINELL HARDNESS TESTING MACHINES WITH FIXED TABLE
(MODEL : TEXMACO TYPE)
Deep Throat Brinell Hardness Testing Machines with Movable Table

  The semi automatic Brinell hardness tester is an inline production machine     highly suitable for batch testing of heavy jobs.
  The machine has a C-Type load frame with a deep throat of 400 mm &     vertical clearance of 600 mm.
  This machine is more suitable for testing hardness of heavy jobs in the     form of wheels, discs, plates, cyclinder blocks, etc.
  Load stages of 750 kgf & 3000kgf (Optional loads of 500kgf & / or 1000     kgf.
  The indentation measurement is with Brinell microscope of 25X     magnification & Least count of asuring device 0.01 mm.
  The machine is provided with a movable table size: 1100 x 600 mm with     rollers for moving the job in both XX (1000 mm) & YY (200 mm)     directions. Load capacity of table is 700 kg.
  Ram stroke of 300 mm with upward speed of 1200 mm/min &     downward (loading) speed of 600 mm/min.
  Test blocks of desired hardness range are available (Optional).
  Special test fixtures for odd jobs / production testing (Optional).
  Computerised Brinellimpression measurement system (BIMS System)     (Optional).
  Accuracy conform to IS:2281-2005 & BS:240.
