Crushing Strength Testing Machine


You are here > Home | Products | Special Deep Throat Brinell For Very Heavy Jobs

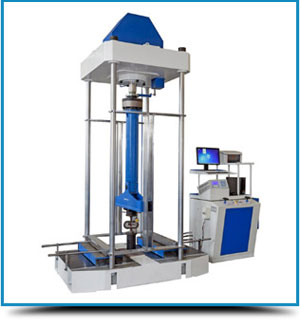

Crushing Strength Testing Machine for PRC Pipes
Model - FCT-EC-600-kN (SPL)
Crushing Strength Testing Machine

  For ascertaining the capacity of PRC pipe to resist an external load     perpendicular to its axis along its length using test pieces sawn from a pipe     as per Annexure "A" & "B" of ISO-18672- 1:2009 (E) Annexure "A" : To     determine the ring bending tensile strength of PRC pipe. Test piece is     subjected to a vertical load across its diameter.
  Annexure "B" : Ring bending tensile strength or crushing strength of PRC     pipe using test pieces cut from a pipe. These properties are used to     assess the capacity of pipe to resist an external load along its length.
  Maximum capacity is 600 kN
  Load measurement by load cell and Deflection measurement by rotary     Encoder.
  Distance between columns is 950 mm
  Maximum piston speed is 80 mm/min.
  Load application is by double acting hydraulic cylinder.
  Piston stroke is 500 mm
  Comprehensive software to cover all the requirements.
