Computerised Optical Brinell Hardness Testing Machines


You are here > Home | Products | Computerised Optical Brinell Hardness Testing Machines

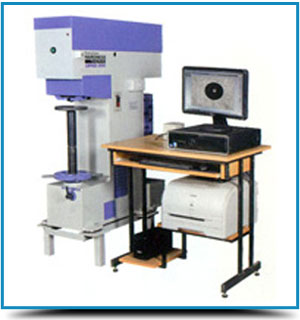

Computerised Optical Brinell Hardness Testing Machines
( OPAB-3000-PC )
Computerised Optical Brinell Hardness Testing Machines

  This machine is designed for Brinell hardness measurement on
    steel & other ferrous materials &  also on non-ferrous materials.
  This machine is a modified version of AKB-3000 & OPAB-3000, which is     provided with an inbuilt optical system (CCO) of 16X.
  An Automatic indenter index system is provided which tilts the indenter     after the impression and on removal of load, The optics will transfer the     image of indentation to CCO, The image is further digitalized & processed     by PC for measurement. The diameter of the image can be measured     automatically/ manually to give Brinell hardness value.
  Thus this machine gives fast and accurate results with less operator     fatigue.
  This model is mainly useful for production testing in Auto Shops,     Foundries, Forge shops and Heat treatment units, etc. Its stability and     unique design of a floating fulcrum lever system ensure high accuracy &     dependability.
  Test loads from 500 to 3000 kgf in steps of 250kgf.
  Machine Test height x Throat is 380 x 200 rnrn,
  Fully computerized system for indentation measurement and display.
  Windows based software system.
  Accurate measurement of Brinell hardness through matched Optics, CCO     Camera, Hardware &
   Software using advanced image processing technology.
  Two modes of measurement - Manual & Auto.
  In Auto mode the image is scanned for measurement & hardness is     displayed automatically.
  Verification facility is provided for clear indication of measured impression     by encircling the same.
  Windowing facility is provided which encircles the blurt images for better     accuracies.
  Macro & Micro adjustment facilities are provided in manual mode for fast     & accurate encircling of the image to be measured.
  Batch testing facility is provided.
  Statistical Analysis report can be generated.
  Calibration mode is provided with password protection.
  Special test fixtures for odd jobs/ production testing can be supplied     (Optional).
  Accuracy conform to IS:2281-2005 & BS:240.

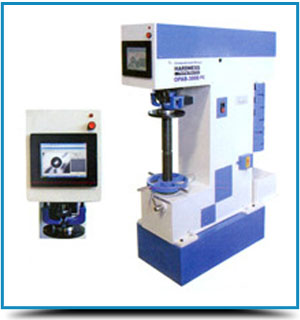

Computerized Brinell Hardness Testing Machines (With Inbuilt Industrial Pc & Touch Screen Facility)
( Model: Opab-3000-IPC )
Computerized Brinell Hardness Testing Machines (With Inbuilt Industrial Pc & Touch Screen Facility)

  This Model is mainly useful for production testing in Auto shops,
    Foundries, Forging Shops and Heat treatment units, etc.
  Load application system is of dead weight type.
  Test Loads from 500 to 3000 kgf in steps of 250 kgf
  Machine Test height x Throat is 380 x 200 rnm.
  A separate hydraulic power pack, positioned in the bottom part of the     machine adds to the machine stability.
  Our unique design of a floating fulcrum lever system ensures high     accuracy and repeatability.
  This machine saves a lot of cycle time, improved accuracy of     measurement and gives fast and accurate results with less
   operator fatigue.
  An Automatic index system is provided which lifts the indenter after the     impression and the magnified 16X image is visible on the inbuilt industrial     touch screen PC with direct BHN values.
  Some features like: Batch testing facility, Statistical analysis, Test report,     Certificate printing facilities are available.
  We can also supply optional loads from 187,5, 250, 500 to 3000 kgf in    steps of 250 kgf, In this case our Machine Model will be
    OPAB-3000-IPC (SPL).
  Special test fixtures for odd jobs/ big flat table for heavy & big jobs for     production testing can be supplied (Optional).
Machine strictly conform to IS: 2281-2005 & BS: 240.
