DIGITAL, HAND OPERATED, COIL SPRING TESTING MACHINES


Model : STM

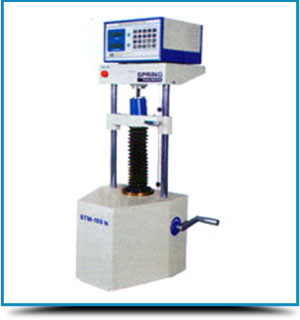

coil-spring-testing-machines

  • The machine is table mounted, digital & hand operated.
  • Load measurement by load cell & displacement by rotary encoder.
  • LCD display on DAS panel for Load & Displacement.
  • Standard load resolution is with 10,000 counts. Finer resolution (Optional)with 20,000 counts can also be offered at extra cost. Standard displacement resolution is 0.01 mm.
  • Vertical day light is 300 mm.
  • Tension Shackles & Compression plates are provided for Tension & Compression springs.
  • It is possible to use a number of load cells, say two or three, to cover much wider range of load, to suit the application. Cost of one load cell is included in the price, but additional load cell will be at extra cost.
  • Various Models - Capacities from 100 N to 2000 N are available.
  • Loading accuracy well within +1%, conform to IS:18281 BS:1610.

]
