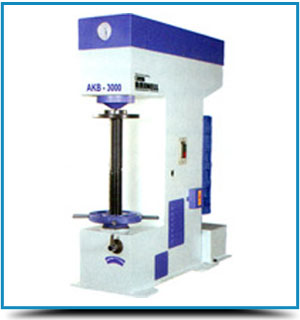

This machine is designed for Brinell hardness measurement
on steel & other ferrous materials & also on non-ferrous
materials like Brass,
Bronze, Aluminium, etc. The material
can be cast, forged or rolled
& the shape can be flat, round
This machine is specially used in production testing, Its stability & unique design of a floating fulcrum lever system ensures high
accuracy & dependability.
The load application system is of dead weight type combined with
mechanical lever system, The supporting hydraulic system is for
initial lifting of load before each test & damping the load application
system for smooth application of load.
Test loads from 500 to 3000 kgf in steps of 250 kgf.
Test height x Throat is 380 x 200 mm.
Indentation measurement by Brinell Microscope of 25X Magnification,
Special Test fixtures for odd jobs/ production testing can be
Computerized Brinell impression measurement system is
Manual/ Optical/ Computerised type Brinell Hardness testing
machines are also available.
Accuracy conform to IS:2281-2005 & BS:240
