Bridge Type Hardness Testing Machines


You are here > Home | Products | Bridge Type Hardness Testing Machines

Hardness Testing Machines
( VPP-MAZ )

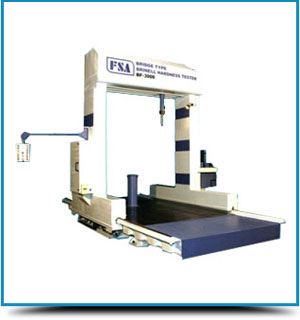

Bridge Type Hardness Testing Machines

Bridge type hardness testing machines are developed for hardness checking on heavy forgings and castings. The weight capacity of the machine can be upto20000 kg or 20 ton.

The machine has a fabricated heavy duty stress relieved and machined bed. Two vertical columns (Front and Rear) connected at top by cross beam with rails is moving on this bed in x - x direction. It is a variable speed motorized movement with rack and pinion arrangement with four wheels on each side. The cross beam is having a hydraulic cylinder piston assembly. This assembly is moving on the cross beam rail in y- y direction.

We can check hardness at any location of the jobs.

1) Test Loads 3000 & 750 kgf
2) Ball dia of Indenter 10 mm & 5 mm T.C. Ball
3) Accuracy of Test Load + 1%
4) Length of Fixed Bed Can be variable depending on the customers requirement
5) Width of Fixed Bed Can be variable depending on the customers requirement
6) Clear test height Can be variable depending on the customers requirement
