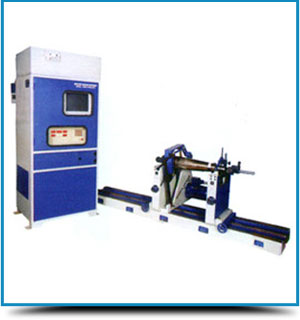

Horizontal, hard bearing type two plane dynamic balancing machine,
with overslung type belt drive arrangement.
Most suitable for the rotors, where end drive cannot be used or where
variety of rotors is more and number of adopters required are more for
end drive machine.
Typical application are balancing of bomb shells for ordnance factories,
pipes, printing machine rolls, etc.
Machine are available from 10 kg. to 3000 kg. capacity in various models.
Measuring Control panel is microprocessor based or DSP based,
indicating amount of unbalance in gms. along with degree, by using photo
scanning arrangement for generating reference signal.
Speed range is from 300 rpm to 3000 rpm.
Balancing accuracies achievable up to 0.5 microns for maximum
Machines are more suitable for repairy workshops, where variety of
rotors to be balanced is more.
Machines conform to IS:13277-1992.
